Touchscreen Computer - EMG7 SERIES
EMBEDDED COMPUTER
EMG7SERIES
Industrial bezel-type panel computer with reliable hardware & OS for long-term stable performance.
7w
10.4
12.1
EMG7 Series is an industrial computer with a bezel-less design and excellent environmental resistance. It is a next-generation panel computer that supports multi-touch gesture operations.
LINEUP

Series Lineup

Spec
DRAG TO LEFT
Product Image
Product name
LCD
Resolution
OS
CPU
RAM
ROM
Interface
Memory Card
Touchscreen
Rated Voltage
Operating
Temperature
Protective
Stracuture
Stracuture
Dimension
(WxHxDmm)

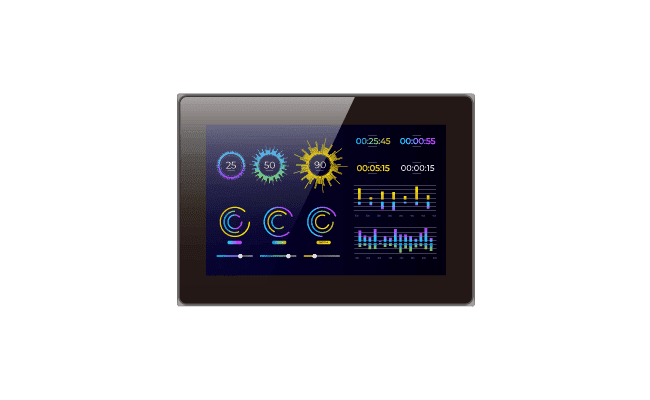

EMG7-W207A8-0024-107-01
7.0w
WVGA
Embedded Linux (Yocto Project)
i.MX535 1GHz
DDR3-SDRAM 512MB
NAND Flash 512MB
RS232C × 1, null, LAN × 1, USB × 2 (TYPE-A), USB × 1 (miniTYPE-B)
SD/SDHC×1
PCAP Touchscreen
DC 24V
0~55℃
IP65 (Front surface at panel mount)
Bezel Frame
192 x 137 x 36
EMG7-310A8-00DC-107
10.4
SVGA
Embedded Linux (Yocto Project)
i.MX535 1GHz
DDR3-SDRAM 1GB
NAND Flash 512MB
RS232C × 1, RS485 × 1, LAN × 1, USB × 2 (TYPE-A), USB × 1 (miniTYPE-B)
microSD/SDHCx1
PCAP Touchscreen
DC 12/24V
0~55℃
IP65 (Front surface at panel mount)
Bezel Frame
278 x 222 x 56
EMG7-312A8-00DC-107-01
12.1
SVGA
Embedded Linux (Yocto Project)
i.MX535 1GHz
DDR3-SDRAM 1GB
NAND Flash 512MB
RS232C × 1, RS485 × 1, LAN × 1, USB × 2 (TYPE-A), USB × 1 (miniTYPE-B)
microSD/SDHCx1
PCAP Touchscreen
DC 12/24V
0~55℃
IP65 (Front surface at panel mount)
Bezel Frame
314 x 248 x 56
  • * 'Smart Solutions' is not yet supported.
PRODUCT INFO

Feature

  • Flexible development freedom and high versatility for advanced development
  • Flexible development freedom and high versatility for advanced development

    The OS is embedded Linux for general-purpose use, allowing flexible development in a usability-oriented environment with highly flexible adjustments using C++, QT, etc., and VNC and a browser for thin-client terminals.

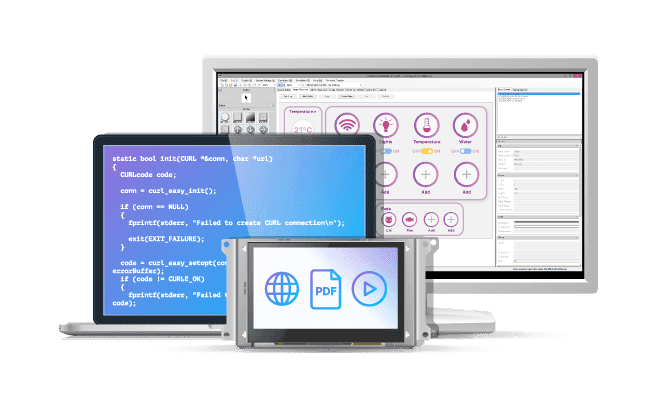

  • 専用・汎用で自由に選べる開発環境「HYBRID HMI」
  • HYBRID HMI, a development environment that can be freely selected for dedicated or general use

    InfoSOSA BUILDER UI development tool for HMI applications is available for use as a dedicated machine. A choice of development environments is available for use as a general-purpose machine. The system can be used continuously from inheritance of past assets to next-generation modelling.


  • Dust and water resistant to IP65 to prevent dust and water droplets
  • Dust and water resistant to IP65 *2 to prevent dust and water droplets

    IPX5-compliant splash protection to prevent foreign objects from entering through the front bezel and IP6X-compliant dust protection to withstand use without worrying about water drops or dust Designed for FA and ideal for use in harsh environments.

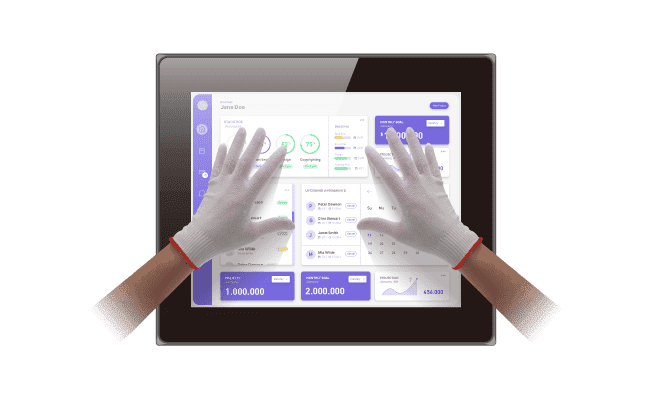

  • Touchscreen operation with gloves on
  • Touchscreen operation with gloves on

    Even with capacitance-type touchscreens, it is possible to operate them with gloves on by adjusting the sensitivity with the independently developed touch controller. (Depends on the type of gloves and operating environment. Please contact us for details).


  • Full flat design for easy sliding operation without steps
  • Full flat design for easy sliding operation without steps

    The front of the device has a fully flat design with no bezel bumps, allowing multi-touch operations such as sliding and drag-and-drop to be performed firmly and smoothly from one edge of the screen to the other.


    • *2 Compatible model: EMG7
