EMBEDDED COMPUTER
Touchscreen Computer
EMBEDDED COMPUTER
EM(G)8SERIES
Thin, compact, industrial open-frame type Linux panel computer ideal for embedding.
4.3w
5.7
7w
10.1w
EM(G)8 series is an industrial PC ideal for embedded apps. The compact & powerful body is suitable for small devices, making it ideal for IoT devices. The series features a write protection function, HDD-less, fanless, & continuous operation, providing high environmental resistance for industrial environments.
LINEUP

Series Lineup

EM8 SERIES: Resistive Type
DRAG TO LEFT
Product Image
Product name
LCD
Resolution
OS
CPU
RAM
ROM
Interface
Memory Card
Touchscreen
Rated Voltage
Operating
Temperature
Stracuture
Dimension
(WxHxDmm)
EM8-W104A7-0005-***
4.3w
WQVGA
Embedded Linux (Yocto Project)
i.MX6UL 528MHz
DDR3-SDRAM 256MB
NAND Flash 512MB
RS232C × 1, RS422/485 × 1, LAN × 1, USB × 1 (TYPE-A), USB × 1 (miniTYPE-B)
microSD/SDHCx1
Resistive Touchscreen
DC 5V
0~55℃
Open Frame
139 x 73 x 31.7
EM8-205A7-0005-***
5.7
VGA
Embedded Linux (Yocto Project)
i.MX6UL 528MHz
DDR3-SDRAM 256MB
NAND Flash 512MB
RS232C × 1, RS422/485 × 1, LAN × 1, USB × 1 (TYPE-A), USB × 1 (miniTYPE-B)
microSD/SDHCx1
Resistive Touchscreen
DC 5V
0~55℃
Open Frame
164 x 107.7 x 33.1
EM8-W207A7-0005-***
7.0w
WVGA
Embedded Linux (Yocto Project)
i.MX6ULL 792MHz
DDR3-SDRAM 512MB
NAND Flash 512MB
RS232C × 1, RS422/485 × 1, LAN × 1, USB × 1 (TYPE-A), USB × 1 (miniTYPE-B)
microSD/SDHCx1
Resistive Touchscreen
DC 5V
-10℃~60℃
Open Frame
170 x 106 x 29.1
EM8-W207A7-0024-***
7.0w
WVGA
Embedded Linux (Yocto Project)
i.MX6ULL 792MHz
DDR3-SDRAM 512MB
NAND Flash 512MB
RS232C × 1, RS422/485 × 1, LAN × 1, USB × 1 (TYPE-A), USB × 1 (miniTYPE-B)
microSD/SDHCx1
Resistive Touchscreen
DC 24V
-10℃~60℃
Open Frame
170 x 106 x 29.1
EM8-W310A7-0024-***
10.1w
WSVGA
Embedded Linux (Yocto Project)
i.MX6ULL 792MHz
DDR3-SDRAM 512MB
NAND Flash 512MB
RS232C × 1, RS422/485 × 1, LAN × 1, USB × 1 (TYPE-A), USB × 1 (miniTYPE-B)
microSD/SDHCx1
Resistive Touchscreen
DC 24V
-10℃~60℃
Open Frame
244 x 147 x 32.4
  • * End of product name: -107 (multilingual), -207 (one language selected), -157 (fast start-up, multilingual), -257 (fast start-up, one language selected)
  • * Only one language selection version is available for the 4.3" 24VDC type.
  • * The mobile maintenance function "Smart e-Remote" is only supported by i.MX6ULL 792 MHz CPU models.
EMG8 SERIES: PCAP - Capacitive Type
DRAG TO LEFT
Product Image
Product name
LCD
Resolution
OS
CPU
RAM
ROM
Interface
Memory Card
Touchscreen
Rated Voltage
Operating
Temperature
Stracuture
Dimension
(WxHxDmm)
EMG8-W104A7-0005-***
4.3w
WQVGA
Embedded Linux (Yocto Project)
i.MX6UL 528MHz
DDR3-SDRAM 256MB
NAND Flash 512MB
RS232C × 1, RS422/485 × 1, LAN × 1, USB × 1 (TYPE-A), USB × 1 (miniTYPE-B)
microSD/SDHCx1
PCAP Touchscreen
DC 5V
0~55℃
Open Frame
139 x 73 x 32.1
EMG8-205A7-0005-***
5.7
VGA
Embedded Linux (Yocto Project)
i.MX6UL 528MHz
DDR3-SDRAM 256MB
NAND Flash 512MB
RS232C × 1, RS422/485 × 1, LAN × 1, USB × 1 (TYPE-A), USB × 1 (miniTYPE-B)
microSD/SDHCx1
PCAP Touchscreen
DC 5V
0~55℃
Open Frame
164 x 107.7 x 33.4
EMG8-W207A7-0005-***
7.0w
WVGA
Embedded Linux (Yocto Project)
i.MX6ULL 792MHz
DDR3-SDRAM 512MB
NAND Flash 512MB
RS232C × 1, RS422/485 × 1, LAN × 1, USB × 1 (TYPE-A), USB × 1 (miniTYPE-B)
microSD/SDHCx1
PCAP Touchscreen
DC 5V
-10℃~60℃
Open Frame
170 x 106 x 28.5
EMG8-W207A7-0024-***
7.0w
WVGA
Embedded Linux (Yocto Project)
i.MX6ULL 792MHz
DDR3-SDRAM 512MB
NAND Flash 512MB
RS232C × 1, RS422/485 × 1, LAN × 1, USB × 1 (TYPE-A), USB × 1 (miniTYPE-B)
microSD/SDHCx1
PCAP Touchscreen
DC 24V
-10℃~60℃
Open Frame
170 x 106 x 28.5
EMG8-W310A7-0024-***
10.1w
WSVGA
Embedded Linux (Yocto Project)
i.MX6ULL 792MHz
DDR3-SDRAM 512MB
NAND Flash 512MB
RS232C × 1, RS422/485 × 1, LAN × 1, USB × 1 (TYPE-A), USB × 1 (miniTYPE-B)
microSD/SDHCx1
PCAP Touchscreen
DC 24V
-10℃~60℃
Open Frame
244 x 147 x 32.7 *1
  • * Product name suffix: -207 (one language selected).
  • * Only one language selection version is available for the 4.3" 24VDC type.
PRODUCT INFO

Feature

  • Flexible development freedom and high versatility for advanced development.
  • Flexible development freedom and high versatility for advanced development

    The OS is embedded Linux for general-purpose use, allowing flexible development in a usability-oriented environment with highly flexible adjustments using C++, QT, etc., and VNC and a browser for thin-client terminals.


  • HYBRID HMI, a development environment that can be freely selected for dedicated or general use.
  • HYBRID HMI, a development environment that can be freely selected for dedicated or general use.

    InfoSOSA BUILDER UI development tool for HMI applications is available for use as a dedicated machine. A choice of development environments is available for use as a general-purpose machine. The system can be used continuously from inheritance of past assets to next-generation modelling.

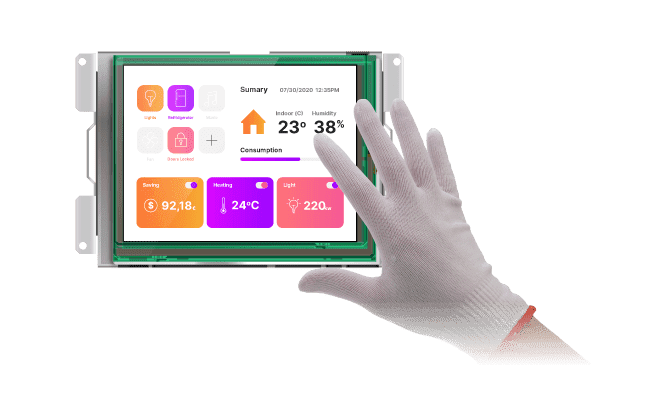

  • Touchscreen operation with gloves on
  • Touchscreen operation with gloves on

    Even with capacitance-type touchscreens, it is possible to operate them with gloves on by adjusting the sensitivity with the independently developed touch controller. (Depends on the type of gloves and operating environment. Please contact us for details).


  • Product Details Video

    Click on the image to play the video, which shows the product configuration and features of the EM8 series, as well as other product-related information.
