TOUCHSCREEN FILM
Touchscreen Film
TOUCHSCREEN FILM
Peephole Prevention Film
Protects privacy by making it difficult to see but the front, preventing eyes surrounding.
Protects customer privacy by preventing unauthorized viewing of ATM PIN numbers, My Number, etc., with a coating that makes it difficult to see anything other than the front.
FEATURE

Feature of Anti-Peep Film

  • Privacy film to prevent prying eyes
  • Privacy film to prevent prying eyes

    The special louver process prevents prying eyes from above and below the screen and from left and right. The film is the easiest and most effective way to prevent visual hacking from potentially dangerous information leakage. It prevents information leakage that can occur when viewing information on the screen in public facilities, business operations, or window operations where many people come and go.

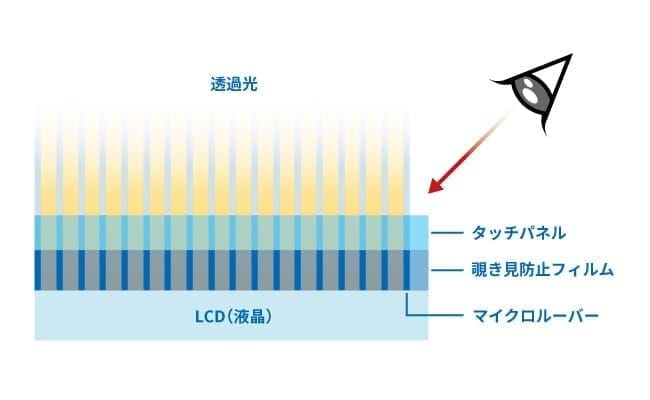

  • Adjust the viewing angle with micro louvers
  • Adjust the viewing angle with micro louvers

    The fine micro-louvers prevent prying eyes from the left and right sides of the screen by controlling the direction of light emission only in the front direction. At the same time, incident light from the outside can be suppressed so that the screen can be clearly seen at the front angle.

USE CASE

Examples of Utilization

  • Anti-bacterial measures plus privacy protection
    Category Cases
    Products used 5-Wire Resistive Touchscreen
    15-inch adoption
    Peephole prevention film
    Antiviral antibacterial film
    Recruitment Industry Medical & Healthcare
    Uses Self-pay terminals in hospitals
    Scene Public and Sanitary Environment / Stain Resistance and Antibacterial
  • Background

    The checkout terminal in the hospital. Patients' personal information is displayed during the checkout process. In addition, antibacterial measures are necessary because the terminal is touched by many unspecified people in the hospital.

  • Adopt Content

    The resistive method, which is more cost effective, was proposed. Because the number of keystrokes in a certain area ("Check" button) in the operation area increases due to the application, there was a concern about the wear of the film in the upper part of the resistive touch screen, but the 5-wire touch screen was adopted, which does not affect the operation of other parts of the touch screen even if the film is partially worn out. However, the 5-wire touch screen is adopted, which does not affect the operation of other parts of the touch screen even if the film is worn out in parts.

RECOMMEND

Ideal for Places Like This

  • For touch panels of industrial equipment requiring confidentiality

    For touchscreen terminals that handle customer information and other highly confidential and outside information

  • For terminals that provide customer service in the medical field.

    For touch panels directly operated by customers provided in hospitals and clinics

  • For touch panels at public sites that are touched by an unspecified number of people

    For public touch panels used by everyone, such as libraries, government offices, civic centers, daycare centers, etc.
