| Size | Tail Length/ Pin Pitch/ Position(mm) |
Dimension(mm) E : Outline V : View-Area A : Active-Area |
Glass/ Total Thickness(mm) |
Product Number | Drawing, 2D/3D Data |
Controller |
|---|---|---|---|---|---|---|
| 3.8 | 50/1.25/Left Side | E : 87 x 65 V : 78.4 x 59.2 A : 77.6 x 58.4 |
0.7/1 |
AST-038A050A |
||
| 5.7 | 70/1.25/Left Side | E : 131.4 x 103 V : 119.2 x 90.4 A : 117.2 x 88.4 |
1.1/1.4 |
AST-057A070A |
||
| 6.2w | 70/1.25/Upper Side | E : 163 x 71.4 V : 151.8 x 59.4 A : 149.8 x 57.4 |
1.1/1.4 |
AST-062A070A |
||
| 6.5 | 80/1.25/Left Side | E : 155 x 117 V : 139 x 104 A : 133 x 100 |
1.1/1.4 |
AST-065B080A |
||
| 7w | 80/1.25/Left Side | E : 165 x 104 V : 154.9 x 93.9 A : 152.4 x 91.4 |
1.1/1.4 |
AST-070A080A |
||
| 7.5 | 70/1.25/Upper Side | E : 168 x 132 V : 155.8 x 117.8 A : 153.8 x 115.8 |
1.1/1.4 |
AST-075A070A |
||
| 10.4 | 80/1.25/Left Side | E : 227 x 173 V : 216 x 163 A : 212 x 159 |
1.8/2.1 |
AST-104A080A |
||
| 10.5 | 60/1.25/Upper Side | E : 222.9 x 176.1 V : 214.6 x 162.8 A : 213.2 x 161.4 |
1.8/2.1 |
AST-105A060A |
||
| 12.1 | 80/1.25/Left Side | E : 263 x 201 V : 250 x 188.5 A : 247 x 185.5 |
1.8/2.1 |
AST-121B080A |
||
| 15 | 80/1.25/Left Side | E : 328 x 252 V : 309 x 233 A : 305 x 229 |
1.8/2.1 |
AST-150C080A |
||
| 15 | 140/1.25/Left Side | E : 328 x 252 V : 309 x 233 A : 305 x 229 |
1.8/2.1 |
AST-150C140A |
||
| 17.1 | 140/1.25/Right Side | E : 354.6 x 295 V : 342.5 x 274.9 A : 340 x 272 |
1.8/2.1 |
AST-171A140A |
||
| 19 | 140/1.25/Right Side | E : 400.6 x 326.4 V : 381.9 x 306.7 A : 377.3 x 302.1 |
1.8/2.1 |
AST-190A140A |
||
| 21.3 | 140/1.25/Left Side | E : 455 x 348 V : 440.2 x 332 A : 430 x 322 |
1.8/2.1 |
AST-213A140A |
Download Docs
Product Detail
-
![Reliable Touch Recognition by Pressure-Based Input Detection]()
-
Reliable Touch Recognition by Pressure-Based Input Detection
The AST series is a general-purpose model of the 4-wire analogue resistive touchscreen series. It is a proven touchscreen that has been widely adopted, especially in industrial applications. As the coordinates are identified by pressure sensitivity, they can be input directly with a finger or pen, and can also be operated with gloves.
-
![Original Controller Dedicated to the Touchscreen]()
-
Original Controller Dedicated to the Touchscreen
The use of an original controller developed in-house enables tuning to meet customer requirements and usage environments, such as sensitivity adjustment and response accuracy. Comprehensive support for touch panels and controllers is provided.
-
![Anti-Glare Film to Reduce Glare]()
-
Anti-Glare Film to Reduce Glare
An anti-glare film that suppresses the reflection of light is used for the ITO film. By customizing, it is possible to change to a clear film to see the LCD image clearly.
Why choose the AST SERIES?
-
![Excellent Response Performance to Dust, Water Droplets]()
-
Excellent Response Performance to Dust, Water Droplets
Resistive touchscreens are pressure-sensitive, which means that they can be used for input by nonconductive substances such as fingers. Due to its pressure sensing mechanism, it has the best response performance against foreign objects such as dust and water droplets compared to other methods.
-
![Power-Saving, Low-Cost & Easy to Install]()
-

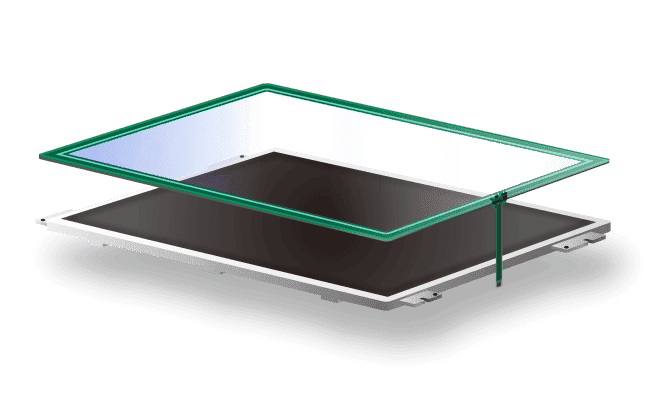

Power-Saving, Low-Cost & Easy to Install
Resistive touch panels have a simpler structure and easier detection circuit design than other methods, and are therefore more energy-efficient and cost-effective. Installation can also be carried out relatively quickly by simply attaching the panel.
-
![Reliable Operation, Stable & Comfortable]()
-

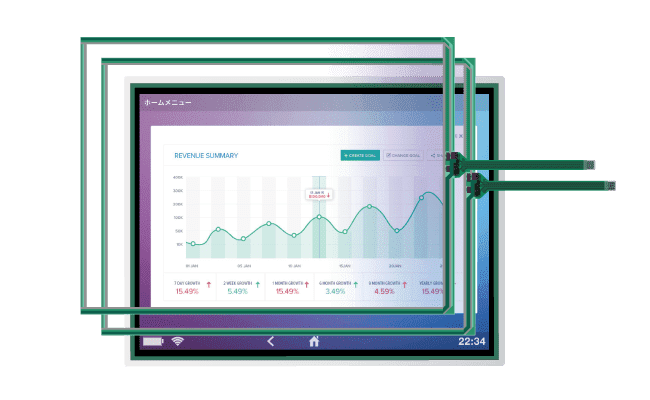

Reliable Operation, Stable & Comfortable
Even in the event of a product life cycle or sudden breakdown, the product can be speedily replaced and put into stable operation with a long-term, stable supply. Reliable and unchanging operation with a secure user experience that is free from worries about erroneous input.
Comparison of Product Series
-
FeatureHighly Reliable & Versatility Resistive Touchscreen
Diffusion Models
Method
Resistive
4-wire Type
Structure
Film/Glass
Detection Method
Single-Touch
Valuation1
Gestures Unsupported
Valuation2
Pen/Gloved-Hand
Film
Anti-Glare or Clear
Size Line Up3.8 － 21.3
3.856.2w6.57w7.510.410.512.11517.11921.3 -
FeatureSmartphone-Like Operation with Resistive Touchscreen
Adoption of Light-Load Film
Method
Resistive
4-wire Type
Structure
Film/Glass
Detection Method
Single-Touch
Valuation1
Gestures Supported
Valuation2
Pen/Gloved-Hand
Film
Anti-Glare or Clear
Size Line Up6.5 － 21.5w
6.510.412.112.1w1515.6w18.5w1921.5w -
FeatureHigh Visibility & Maintainability High-Spec Model
ANR/Anti-Fingerprint
Method
Resistive
4-wire Type
Structure
Film/Glass
Detection Method
Single-Touch
Valuation1
Gestures Unsupported
Valuation2
Pen/Gloved-Hand
Film
Anti-Glare or Clear
Size Line Up5.7 － 15
5.77w8.48.5w10.412.115 -
FeatureHigh Durability& Weatherability Square Model with 5-wire Type
Long-Life Model
Method
Resistive
4-wire Type
Structure
Film/Glass
Detection Method
Single-Touch
Valuation1
Gestures Unsupported
Valuation2
Pen/Gloved-Hand
Film
Anti-Glare or Clear
Size Line Up10.4 － 19
10.412.1151719 -
FeatureMulti-touch Gesture Operation with Resistive Touchscreen
Light Duty Multi-Touch
Method
Resistive
4-wire Type
Structure
Film/Glass
Detection Method
Multi-Touch
Valuation1
Gestures Supported
Valuation2
Pen/Gloved-Hand
Film
Anti-Glare or Clear
Size Line Up5.7 － 21.5w
5.77w8.410.1w10.412.112.1w1515.6w1718.5w21.5w
