RESISTIVE TOUCHSCREEN
4-Wire Light-Touch Type
RESISTIVE TOUCHSCREEN
LSTSERIES

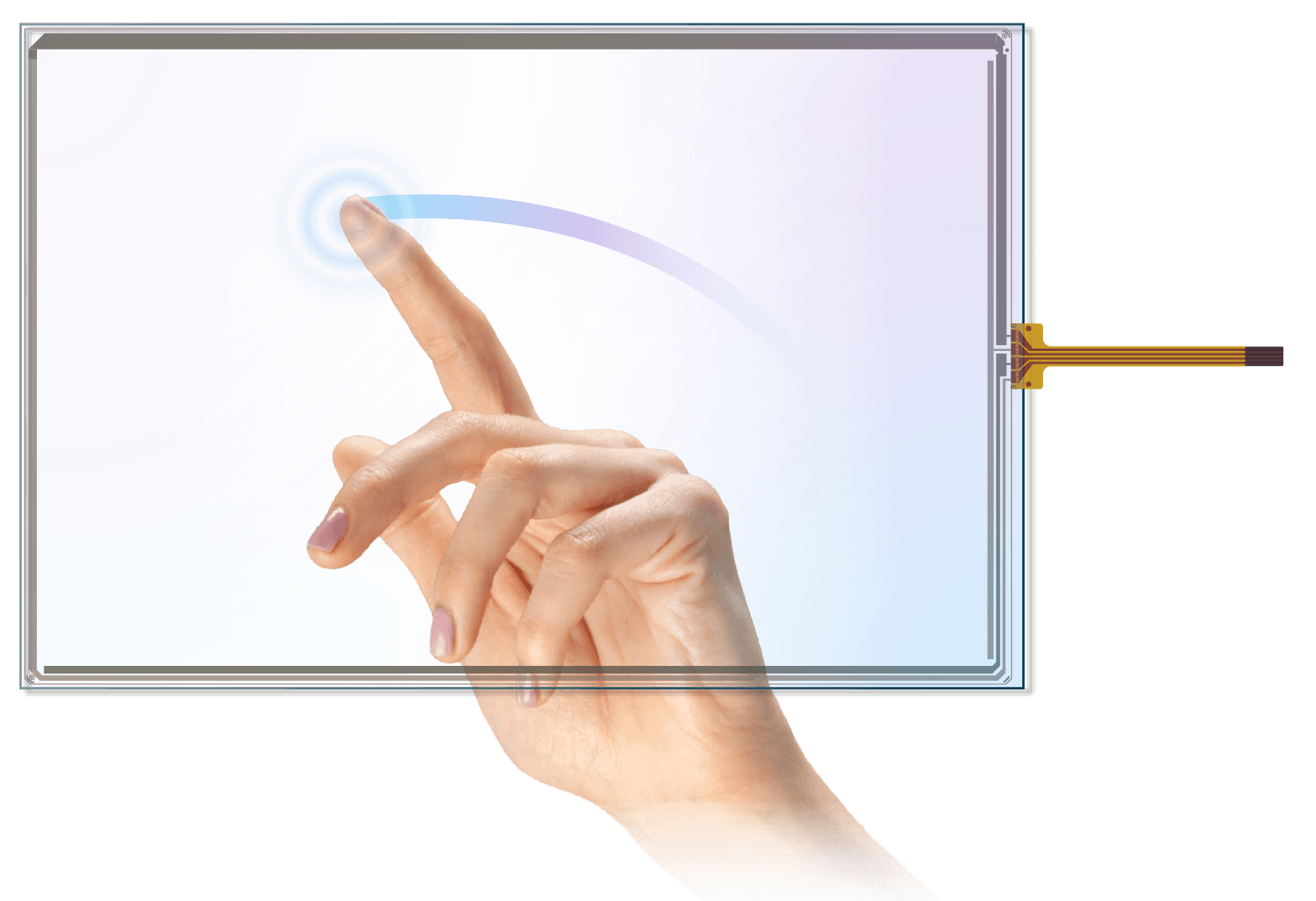

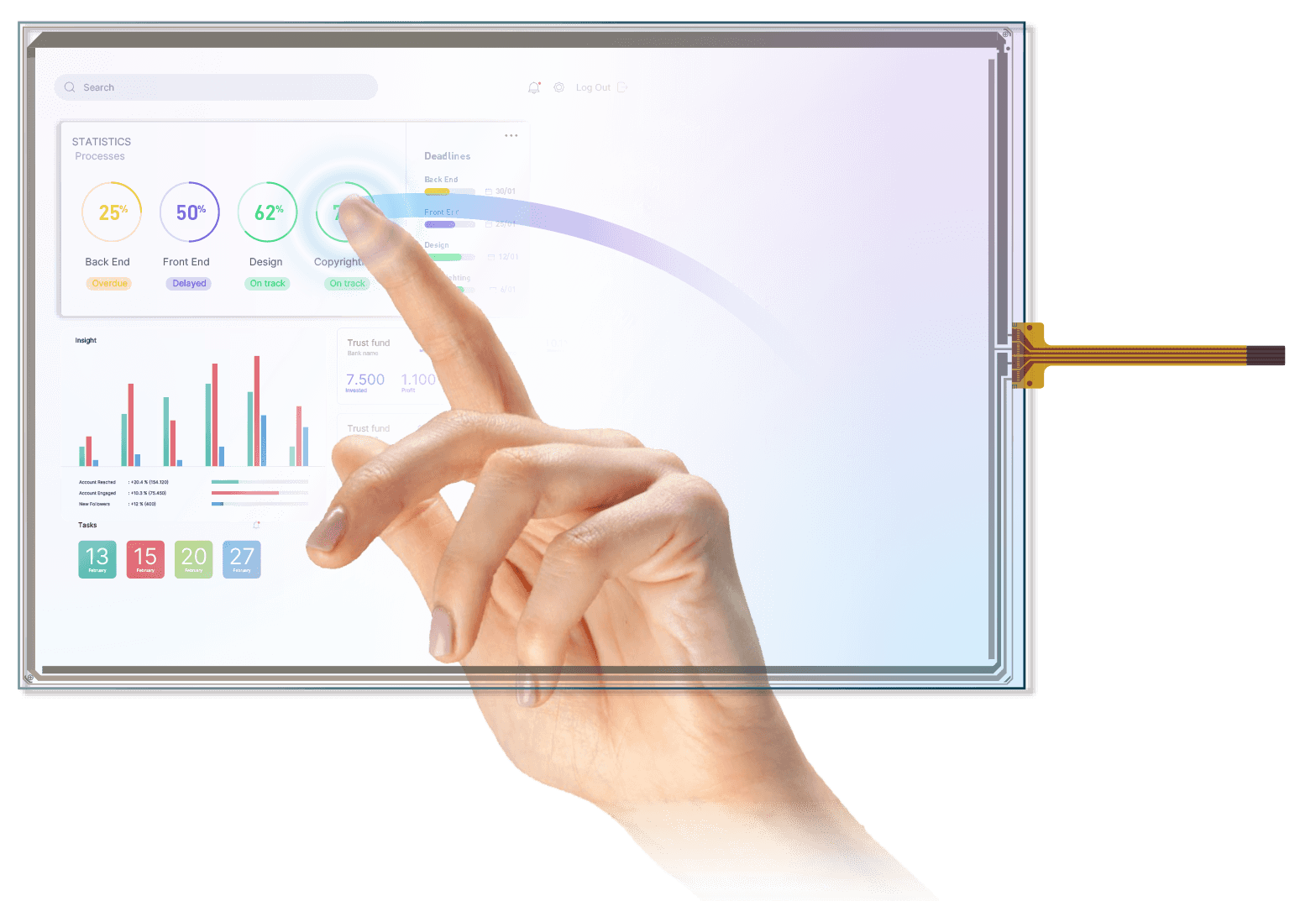

Operation-like to PCAP is achieved by utilising advantages of resistive. Allows operations such as flick input.
4.3w
5.7
6.5
7w
8.4
9w
10.1w
10.4
12.1
12.1w
15
15.6w
18.5w
19
21.5w
By simply attaching it to an LCD display, you can add a touchscreen. By incorporating it into your dev-products, you can realize a high-quality & intuitive HMI. By combining it with a proprietary controller, you can tune it to the environment of customers who need glove operation or require weather resistance.
DigiKey
Available on DigiKey * Access External Site
Line Up
DRAG TO LEFT
Size Tail Length/
Pin Pitch/
Position(mm)
Dimension(mm)
E : Outline
V : View-Area
A : Active-Area
Glass/ Total
Thickness(mm)
Product Number Drawing,
2D/3D Data
Controller
4.3w 60/1/Lower Side E : 105.4 x 67.1
V : 97.54 x 55.86
A : 95.54 x 54.36
1.1/1.4

LST-043WB060B

5.7 80/1.25/Left Side E : 131.4 x 103
V : 119.7 x 90.9
A : 115.7 x 86.9
1.1/1.4

LST-057B080A

6.5 80/1.25/Left Side E : 147.3 x 114.3
V : 136.98 x 103.86
A : 132.98 x 99.86
1.1/1.4

LST-065B080A

7w 80/1.25/Left Side E : 165 x 104
V : 155.9 x 94.94
A : 152.9 x 91.94
1.1/1.4

LST-070WB080A

8.4 80/1.25/Left Side E : 185.6 x 143.3
V : 174.9 x 132.3
A : 170.9 x 128.3
1.8/2.1

LST-084B080A

9w 80/1.25/Left Side E : 214.2 x 135.5
V : 201.3 x 122.58
A : 197.3 x 118.58
1.8/2.1

LST-090WB080A

10.1w 80/1.25/Left Side E : 234.7 x 153
V : 221.46 x 140.1
A : 217.46 x 136.1
1.8/2.1

LST-101WB080A

10.1w 80/1.25/Left Side E : 235 x 143
V : 227.22 x 129.78
A : 223.22 x 125.78
1.8/2.1

LST-101WB080A/WS
* Build to Order

10.4 80/1.25/Left Side E : 227.6 x 175.4
V : 215.7 x 162.9
A : 211.7 x 158.9
1.8/2.1

LST-104B080A

12.1 80/1.25/Left Side E : 263 x 201
V : 250.5 x 189
A : 246.5 x 185
1.8/2.1

LST-121B080A

12.1w 80/1.25/Left Side E : 278.4 x 180.7
V : 265.62 x 167.7
A : 261.62 x 163.7
1.8/2.1

LST-121WB080A

15 80/1.25/Left Side E : 328 x 252
V : 308.63 x 232.6
A : 304.63 x 228.6
1.8/2.1

LST-150B080A

15.6w 80/1.25/Left Side E : 361.5 x 210.2
V : 348.73 x 198.04
A : 344.73 x 194.04
1.8/2.1

LST-156WB080A

18.5w 80/1.25/Left Side E : 428.5 x 250
V : 414.3 x 234.9
A : 410.3 x 230.9
1.8/2.1

LST-185WB080A

19 80/1.25/Left Side E : 400.6 x 326.4
V : 380.8 x 305.6
A : 376.8 x 301.6
1.8/2.1

LST-190B080A

21.5w 80/1.25/Left Side E : 500 x 293.2
V : 480.56 x 272.29
A : 476.56 x 268.29
1.8/2.1

LST-215WB080A

SUPPORT DOWNLOAD

Download Docs

Specification
Touchscreen | LST SERIES
Specification
Controller IC | TSC SERIES
Download
Specification
Controller | TSC SERIES
Drawing
Controller Cable | TSC SERIES
Manual
Film/Glass Structure Touchscreen | Installation Guide
Catalog
Touchscreen | LST SERIES
PRODUCT INFO

Product Detail

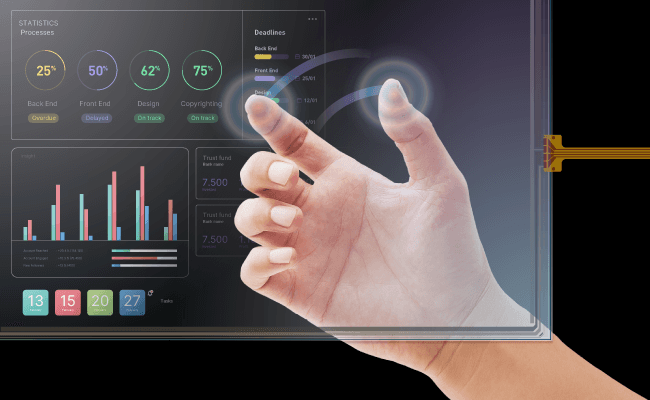

  • Resistive Touchscreen enables Gesture Operation
  • Resistive Touchscreen enables Gesture Operation

    4-wire resistive light-load single touchscreen with a light touch feeling like a smartphone. Ideal for environments where gesture operation needs to be introduced and realised at low cost.


  • Light Touch & Feel Like a Smartphone-like Operation
  • Light Touch & Feel Like a Smartphone-like Operation

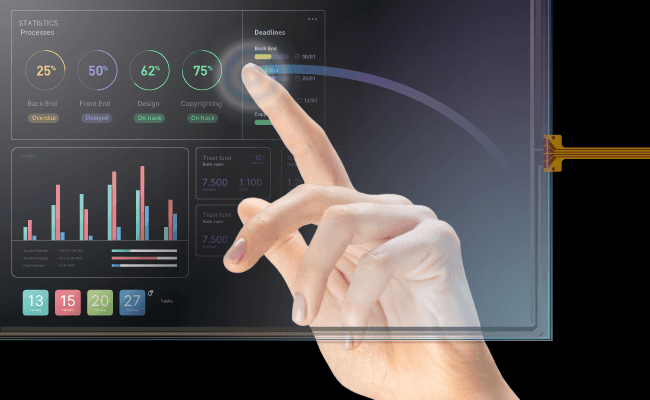

    Smooth film material with unique technology enables operation similar to the electrostatic method, utilising the unique advantages of resistive film. Flick input and other smartphone-like operations are possible.
