CAPACITIVE TOUCHSCREEN
CoF Controller Type
CAPACITIVE TOUCHSCREEN
DUS-SSERIES
COF controller and I2C-I/F enable space-saving installation. Excellent robustness with cover + glass construction.
7w
10.1w
The controller is integrated by adopting COF (Chip on Flexible), and the I2C interface enables wire saving and space saving. Easy-to-handle capacitive touchscreen with cover glass + glass structure for thinness and enhanced robustness.
Sample Product
DRAG TO LEFT
Size Dimension(mm)
E : Outline
A : Active-Area
Cover/
Total
Thickness(mm)
Product Number Drawing,
2D/3D Data
Controller
7w E : 166 x 107
A : 152.4 x 91.44
1.1 / 2.45

DUS-S070WAF131

10.1w E : 235 x 143
A : 222.72 x 125.28
1.1 / 2.45

DUS-S101WAF131

10.1w E : 227 x 148
A : 219.96 x 135.6
1.1 / 2.45

DUS-S101WAF131/X2

SUPPORT DOWNLOAD

Download Docs

Specification
Touchscreen | DUS-S SERIES
Manual
Glass/Glass Structure Touchscreen with CoF Controller|Installation Guide
Catalog
Touchscreen | DUS-S SERIES
PRODUCT INFO

Product Detail

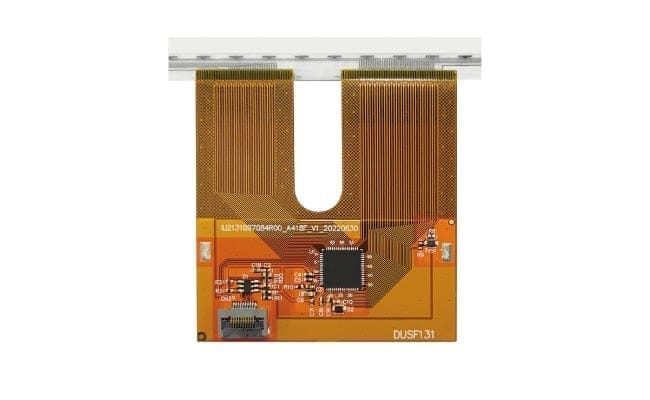

  • Vibration & Shock Resistant CoF structure
  • Vibration & Shock Resistant CoF structure

    DUS-S SERIES employs a "CoF (Chip on Flexible) structure" in which chips are mounted on a flexible substrate. Compared to conventional structures, this structure is more resistant to vibration and shock, greatly reducing problems such as controller disconnection during transportation.

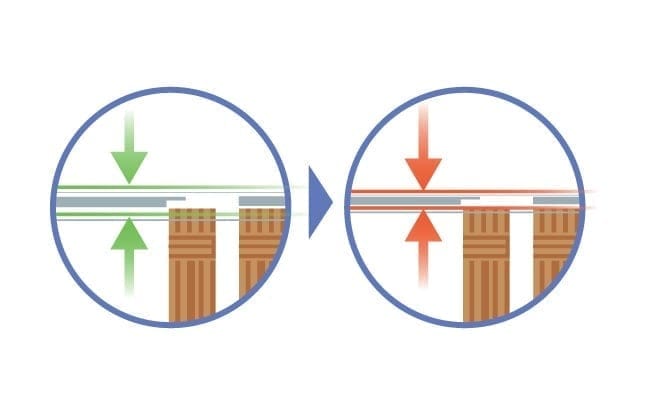

  • Realizes a Thin & Compact, Slim, Narrow-Frame Design
  • Realizes a Thin & Compact, Slim, Narrow-Frame Design

    Compared to previous DMC products, the width of the picture frame has been significantly reduced. Compared to the previous DUS-A SERIES model, the height has been reduced by more than 8mm. Significantly lighter and thinner. More stylish and sophisticated design than the previous model.

WHY DUS-S SERIES

Why choose the DUS-S SERIES?

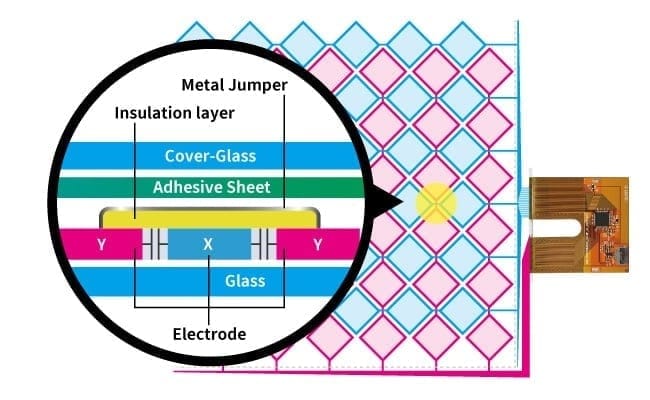

  • Slim & Robust Cover + Glass Construction
  • Slim & Robust Cover + Glass Construction

    The combination of cover glass and a glass sensor provides a thin yet sturdy structure. The upper cover glass can be changed to various materials, such as plastic or thick glass, according to customer requirements.

  • I2C Interface Enables Flexible Development
  • I2C Interface Enables Flexible Development

    I2C is adopted as the controller interface (*1). I2C is a serial communication standard that allows communication using only three signal lines (SDA/SCL/INT).

    *1 = HID over I2C supported
    *2 = Driver selection is available for Linux
