TOUCHLESS-HMI
Touchless Gesture Unit
TOUCHLESS-HMI
HGSERIES
Infrared gesture sensor enables operation without touching the terminal. Ideal for public equipment.
By holding your hand over the main unit, which is equipped with a gesture sensor that detects hand movements away from the screen, direction of movement is detected. User can operate device by gesture operation only, without touching the screen. It can also be used in env. such as for Industrial & medical equip.
LINEUP

Series Lineup

Spec
DRAG TO LEFT
Product Name
Dimensions (WxHxDmm)
Body Color
Weight (Body)
Power Supply Voltage
Sensor
Sensor Type
Sensor Detection Range
Viewing Angle (Diagonal)
HG-RL6U2C01
130 x 60 x 16
Black
App. 110g
DC 5V
infra-red rays
Gesture Sensor
0-15 cm (recommended 5-15 cm)
60°
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
Panel Cutout Dimensions(mm)
Interface
Protection Structure
LED Display
Compliance Standards
0~55℃
10~80%RH
-20~+60℃
10~80%RH
Φ22.3 + 0.3 / -0
USB Type-C
IP65 Equivalent (Front part)
RGB-24bit 6pcs
CE / UL / FCC
  • * Connection cable is not included. Please contact our sales representative for details.
PRODUCT INFO

Feature

  • More freedom and smarter operation in the field
  • More freedom and smarter operation in the field

    Up-and-down scrolling is possible with an up-and-down motion of the hand, left-and-right scrolling with a left-right motion, and ENTER input with a hover motion of the hand. The innovative gesture device presents various possibilities in situations that previously required operations other than touch, using only hand movements to create a more comfortable operating experience than ever before.

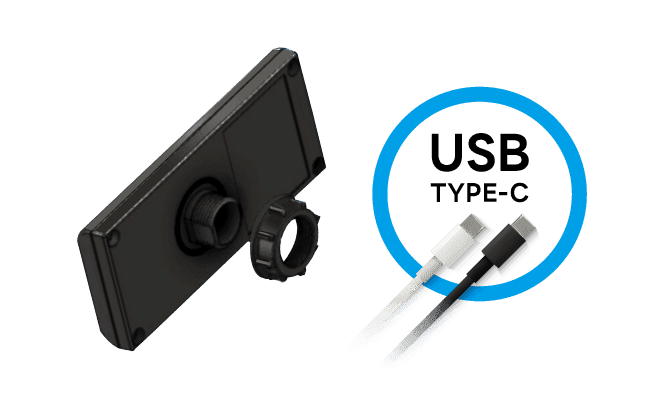

  • No complicated setup required, just a simple USB connection for easy installation
  • No complicated setup required, just a simple USB connection for easy installation

    No setup is required, just connect it with a USB Type-C cable, and use it immediately in various work environments by simply fixing it to the Φ22.3mm hole with a screw on the back side. The ease of installation, which is ideal for retrofitting to equipment in operation, dramatically improves workflow on the job site.

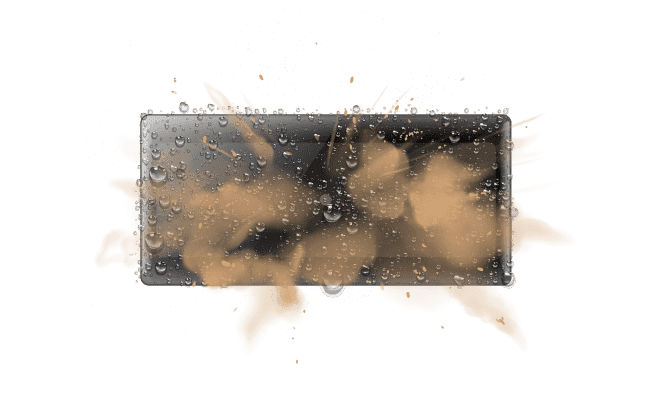

  • IP65 dustproof and drip-proof construction, resistant to water and dust
  • Equivalent to IP65 dustproof and drip-proof construction, resistant to water and dust

    Equivalent to IP65 design is resistant to water and moisture, as well as to sand, dust, and other dust particles, making it safe to use in outdoor installations, factories, and other dusty locations. The high dustproof and waterproof performance, which can withstand heavy rain and sandstorms, protects the equipment even in harsh environments.


  • Customize your own operation freely
  • Customize your own operation freely

    By using HGSettingTool, you can change the LED colors and patterns, adjust the sensor sensitivity(*), and easily set other temporary lock settings among others. The codes sent to the host are sent as keycodes similar to a keyboard, and you can also set the keycodes to send in the dedicated setting tool.

    * Cannot change the detection distance.


  • Product Details Video

    Click on the image to play the video, which shows the product configuration and features of the HG series, as well as other product-related information.

SCENE

Introduction Scene

  • Control the Andon display remotely

    Minimize factory movements by controlling the Andon operation panel from a distance using hand gestures.

  • Operate display from the work table

    Operate the control panel of a distant display, such as a device across the work table, using hand gesture control.

  • Avoid touch the screen with dirty hands

    Operate the screen using hand gestures without touching it with soiled gloves or dirty hands due to hygiene reasons.

  • Avoid screen with disinfected hands

    Avoid touching the screen during patient examination and treatment to prevent contamination of disinfected hands or gloves.

Pick It Up Now for a New Operating Experience.
This innovative hand gesture technology enables more intuitive and efficient operation. Various operations become possible through hand movements, achieving a more comfortable operating experience than ever before.
Pick It Up Now for a New Operating Experience.
