TEACHING-PENDANT
Touchscreen Pendant
TEACHING-PENDANT
EMPSERIES
Next-Generation Pendant with Embedded Linux for Unchanged Reliability & Usability.
7w
This is an input and operation device with a touchscreen display that is used for teaching tasks such as creating and integrating machine operation programs and instructing operation. As a controller of the machine, various devices can be operated from the touchscreen.
LINEUP

Series Lineup

Spec
Product Name
CPU
RAM
ROM
OS
Display
Touchscreen
Interface
Dimension (WxHxDmm) *1
Weight *2
Protective Structure
Overseas Standards
Related Volatge Range
Operating Temp. & Humidity Range
Storage Temp. & Humidity Range
Emergency Stop Switches - Number of Installations/ Contact
Emergency Stop Switches - Contact Rating
Selector Switch - Number of Installations/ Contact
Selector Switch - Contact Rating
Enabling Switches - Number of Installations/ Contact
Enabling Switches - Contact Rating1
Enabling Switches - Contact Rating2
Enabling Switches - Contact Rating3
EMP-W207A7-0024-207
i.MX6UL 528MHz Cortex-A7
DDR3-SDRAM 512MB
NAND Flash 512MB
Embedded Linux
7.0w, WVGA (800 x 480)
Resistive Touchscreen
LAN 10Base-T/100Base-TX
218 x 173 x 60
800g or less
IP65
CE/UKCA
DC24V±20%
0~40℃, 10~90%RH (No condensing, Wet bulb temperature 39℃ or under)
-20~60℃, 10~90%RH (No condensing, Wet bulb temperature 39℃ or under)
1 piece/ 2b contact (externally wired)
1A/DC30V (resistive/inductive load)
1 piece/ 2b (external wiring)
0.1A/ DC30V (resistive load)
1 piece/ 2 contacts (externally wired)
1A/DC30V (resistive load)
0.7A/DC30V (inductive load)
Mechanical: position 1 → 2 → 1 Over 1 million times
  • *1 Cable and emergency stop switch not included
  • *2 Cable not included.
PRODUCT INFO

Feature

  • Analogue resistive touchscreens are used
  • Analogue resistive touchscreens are used

    Resistive touchscreens are used, which can be operated by touch input using finger pressure, pen or other pressure-sensitive devices. It does not react easily to dust, water droplets and other dirt, and can be used for input regardless of the material used, such as thick gloves.


  • Flexible development freedom and high versatility for a high degree of coordination
  • Flexible development freedom and high versatility for a high degree of coordination

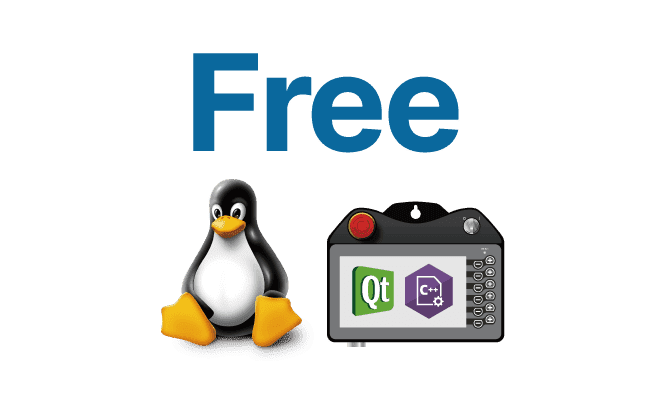

    The OS is embedded Linux for general-purpose use, allowing flexible development in a usability-oriented environment with highly flexible adjustments using C++, QT, etc., and VNC and a browser for thin-client terminals.


  • Full flat design for easy sliding operation without steps
  • Full flat design for easy sliding operation without steps.

    The front has a fully flat design with no bezel bumps, allowing multi-touch operations such as sliding and drag-and-drop to be performed firmly and smoothly from one edge of the screen to the other.


  • Dust and waterproof performance IP65-compliant to prevent dust and water droplets
  • Dust and waterproof performance "IP65-compliant" to prevent dust and water droplets

    IPX5-compliant splash protection to prevent foreign objects from entering through the front bezel and IP6X-compliant dust protection to withstand use without worrying about water drops or dust Designed for FA and ideal for use in harsh environments.


  • Product Details Video

    Click on the image to play the video, which shows the product configuration and features of the EMP series, as well as other product-related information.
