PCAP WITH COVER-GLASS
Integlated Glass Type
PCAP WITH COVER-GLASS
DUS-LDSERIES
Slim down to weight by using thin glass. Slim & smart cover glass touchscreen.
15.6w
21.5w
A DOG (Direct print on glass) technology integrates cover glass and ITO glass. It achieves thinness without sacrificing durability. It provides a strong and smart installation that does not spoil the design of the product.
Line Up
DRAG TO LEFT
Size Dimension(mm)
E : Outline
A : Active-Area
Total
Thickness(mm)
Product Number Drawing,
2D/3D Data
Controller
15.6w E : 386.2 x 241.4
A : 344.3 x 193.6
1.8

DUS-LD156WA120A2A

21.5w E : 523 x 321
A : 476.06 x 267.78
1.8

DUS-LD215WA120A2A

SUPPORT DOWNLOAD

Download Docs

Specification
Touchscreen | DUS-LD SERIES
Specification
Controller | DUSx200 SERIES
Manual
Cover-Glass+Glass Structure Touchscreen with Colour Printing | Installation Guide
Cable
Controller Cable | DUS-10USB
Catalog
Touchscreen | DUS-LD SERIES
PRODUCT INFO

Product Detail

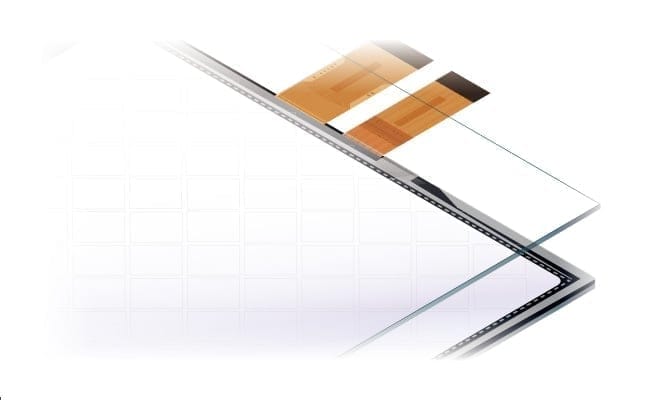

  • Slim & sleek Cover-Glass touchscreen
  • Slim & Functional
    Cover-Glass touchscreen

    DOG (Direct print on glass) technology allows the 'black bezel' to be printed directly on the ITO glass, resulting in both high robustness and slimness.

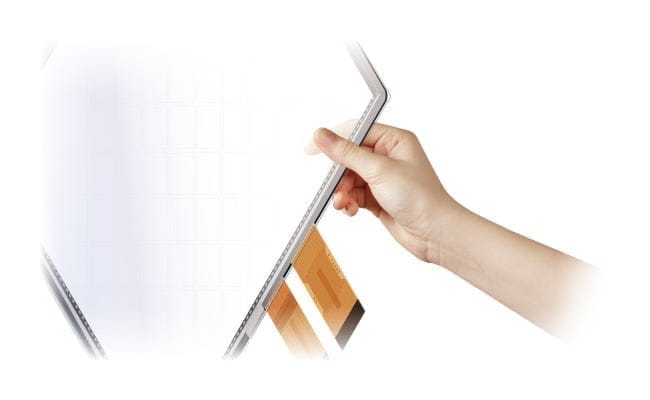

  • Thin glass adoption Slim down to weight
  • Thin glass adoption
    Slim down to weight

    Cover-Glass & thin glass are bonded together without an air layer to maintain toughness, while slimming down the weight in addition to the thickness. It is easy to handle & contributes to reducing the weight of installed products.

WHY DUS-LD SERIES

Why choose the DUS-LD SERIES?

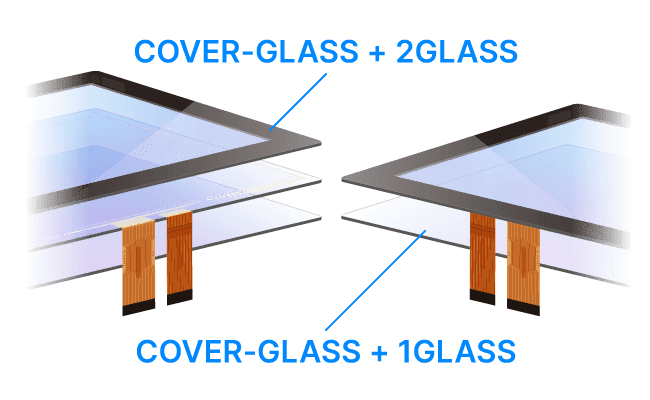

  • Glass components used. Slimmed down from 3 to 2 pieces
  • Glass components used.
    Slimmed down from 3 to 2 pieces

    It has one less glass than the normal configuration (cover glass + glass + glass) and is approximately 60% slimmer than our standard product. (e.g. DUS-LA SERIES thickness 4.3 mm → 2.5 mm)

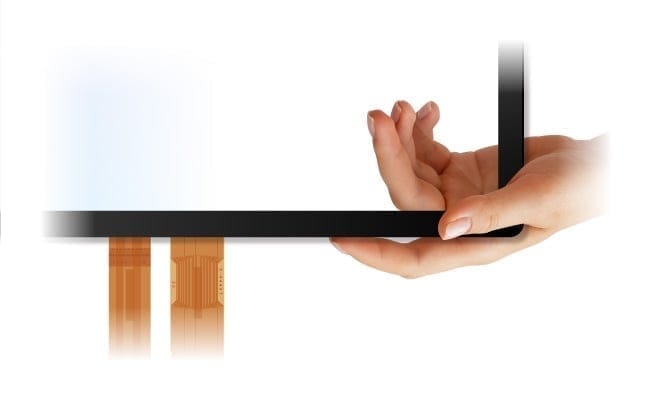

  • Physical glass. Reduced weight by eliminating it
  • Reducing weight

    As a result of the slimmer glass sensor, the total weight of the product has been reduced by approximately 40% compared to our standard product (e.g. compared to the 21.5 inch size DUS-LA series). The ease of handling has also been further improved.

Please consider the DUS-LD series.
