Rugged & Reliable with Rapid deliveryTouch LCD
INOUTOriginal LCDTouch Module

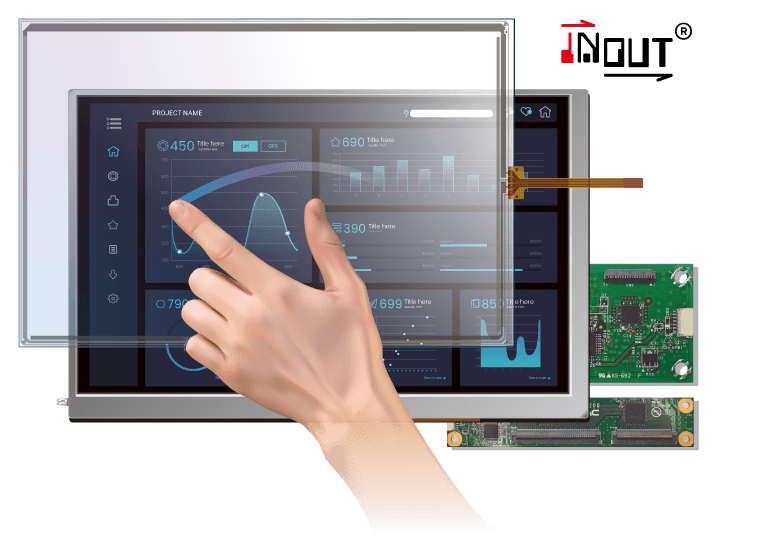

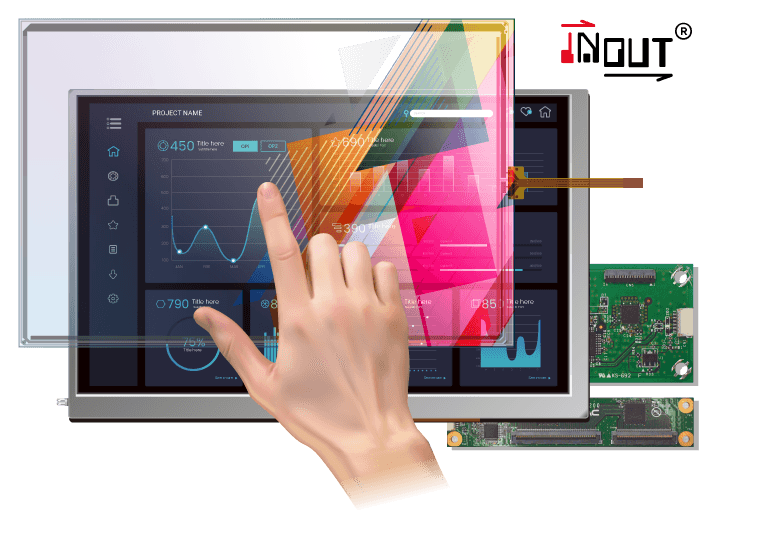

Touchscreen LCD Type
We offer touchscreens with field-essential functions like process control, display, progress tracking, tool data, and NG check, empowering production and distribution sites.
Spec/ Lineup
DRAG TO LEFT
LCD Spec
DRAG TO LEFT
| Size | Dot-Comp. (H x V dot) |
Active Area (W x H mm) |
Pixel Pitch (W x H mm) |
Number of colors |
View Angle (V/H) |
Backlight System/Driver |
Backlight Life (Typ.) |
LCD I/F |
|---|---|---|---|---|---|---|---|---|
| 4.3w | 480 x 272 (R,G,B) |
95.04 x 53.856 | 0.198 x 0.198 | 16.7M (Color 8bit) |
-80～80/ -80～80 |
LED/Not Installed | 50,000h | CMOS 3.3V Parallel |
| 7w | 1024 x 600 (R,G,B) |
154.21 x 85.92 | 0.1506 x 0.1432 | 16.7M (Color 8bit) |
-80～80/ -80～80 |
LED/Installed | 50,000h | LVDS |
| 10.1w | 1024 x 600 (R,G,B) |
222.72 x 125.28 | 0.2175 x 0.2088 | 16.7M (Color 8bit) |
-85～85/ -85～85 |
LED/Installed | 50,000h | LVDS |
| 12.1w | 1280 x 800 (R,G,B) |
261.12 x 163.2 | 0.204 x 0.204 | 16.7M (Color 8bit) |
-80～80/ -80～80 |
LED/Installed | 50,000h | LVDS |
| 15.6w | 1920 x 1080 (R,G,B) |
344.16 x 193.59 | 0.179 x 0.179 | 16.7M (Color 8bit) |
-89～89/ -89～89 |
LED/Installed | 50,000h | LVDS (Dual channel) |
| 21.5w | 1920 x 1080 (R,G,B) |
476.064 x 267.786 | 0.248 x 0.248 | 16.7M (Color 8bit) |
-89～89/ -89～89 |
LED/Installed | 50,000h | LVDS (Dual channel) |
Specifications for each model
DRAG TO LEFT
| Size | Model | Touch- screen *1 |
Brightness | Controller I/F |
touch points/ Continuous striking life |
Ambient temp. /for storage |
Dimensions (H x V x Dmm) |
Weight/ Voltage |
|---|---|---|---|---|---|---|---|---|
| 4.3w | TK-SPA043WQ-101 | PCAP G/F/F |
625cd/㎡ | USB/I2C |
10 point/ 50M times |
-20 ～ 70℃/ -30 ～ 80℃ |
119 x 81 x 5.17 | T.B.D./ T.B.D. |
| 4.3w | TK-SRA043WQ-101 | Resistive F/G |
500cd/㎡ | Controller Sold Separately |
1 point/ 1M times |
-20 ～ 70℃/ -30 ～ 80℃ |
105.4 x 67.1 x 3.9 | 55g ±10%/ T.B.D. |
| 7w | TK-SPA07BWS-111 | PCAP G/F/F |
440cd/㎡ | USB/I2C |
10 point/ T.B.D. |
-20 ～ 70℃/ -30 ～ 80℃ |
186 x 118 x 12.18 | T.B.D./ T.B.D. |
| 7w | TK-SPA07BWS-101 | PCAP G/G |
430cd/㎡ | I2C/USB/UART (3.3V) |
5 point/ 50M times |
-30 ～ 80℃/ -30 ～ 80℃ |
166.62 x 108 x 13.03 | T.B.D./ T.B.D. |
| 7w | TK-SRA07BWS-101 | Resistive F/G |
390cd/㎡ | Controller Sold Separately |
1 point/ 10M times (Gesture Comp.) |
-20 ～ 80℃/ -30 ～ 80℃ |
167.75 x 101.36 x 12.08 | T.B.D./ T.B.D. |
| 10.1w | TK-SPA101WS-111 | PCAP G/F/F |
440cd/㎡ | USB/I2C |
10 point/ 50M times |
-20 ～ 70℃/ -30 ～ 80℃ |
255 x 161 x 8.54 | T.B.D./ T.B.D. |
| 10.1w | TK-SPA101WS-101 | PCAP G/G |
430cd/㎡ | I2C/USB/UART (3.3V) |
5 point/ 50M times |
-20 ～ 70℃/ -30 ～ 80℃ |
236.63 x 143 x 9.95 | T.B.D./ T.B.D. |
| 10.1w | TK-SRA101WS-101 | Resistive F/G |
390cd/㎡ | Controller Sold Separately |
1 point/ 10M times (Gesture Comp.) |
-20 ～ 70℃/ -30 ～ 80℃ |
235 x 143 x 8.66 | T.B.D./ T.B.D. |
| 12.1w | TK-SPA121WX-111 | PCAP G/F/F |
350cd/㎡ | USB/I2C |
10 point/ T.B.D. |
-20 ～ 70℃/ -20 ～ 70℃ |
296 x 202 x 12.13 | T.B.D./ T.B.D. |
| 12.1w | TK-SPA121WX-101 | PCAP G/G |
340cd/㎡ | I2C/USB/UART (3.3V) |
5 point/ 50M times |
-20 ～ 70℃/ -20 ～ 70℃ |
278 x 184 x 12.51 | T.B.D./ T.B.D. |
| 12.1w | TK-SRA121WX-101 | Resistive F/G |
310cd/㎡ | Controller Sold Separately |
1 point/ 10M times (Gesture Comp.) |
-20 ～ 70℃/ -20 ～ 70℃ |
278.4 x 180.7 x 12.26 | T.B.D./ T.B.D. |
| 15.6w | TK-SPA156FH-111 | PCAP G/F/F |
400cd/㎡ | USB/I2C |
10 point/ 50M times |
-20 ～ 70℃/ -30 ～ 80℃ |
386.2 x 244 x 12.13 | T.B.D./ T.B.D. |
| 15.6w | TK-SPA156FH-101 | PCAP G/G |
390cd/㎡ | I2C/USB/UART (3.3V) |
5 point/ 50M times |
-20 ～ 70℃/ -30 ～ 80℃ |
363.8 x 215.9 x 11.81 | T.B.D./ T.B.D. |
| 15.6w | TK-SRA156FH-101 | Resistive F/G |
350cd/㎡ | Controller Sold Separately |
1 point/ 10M times (Gesture Comp.) |
-20 ～ 70℃/ -30 ～ 80℃ |
363.8 x 215.9 x 11.56 | T.B.D./ T.B.D. |
| 21.5w | TK-SPA215FH-111 | PCAP G/F/F |
350cd/㎡ | USB/I2C |
10 point/ 50M times |
0 ～ 60℃/ -20 ～ 60℃ |
523 x 321 x 16.35 | T.B.D./ T.B.D. |
| 21.5w | TK-SPA215FH-101 | PCAP G/G |
340cd/㎡ | I2C/USB/UART (3.3V) |
5 point/ 50M times |
0 ～ 60℃/ -20 ～ 60℃ |
497.6 x 287 x 16.03 | T.B.D./ T.B.D. |
| 21.5w | TK-SRA215FH-101 | Resistive F/G |
310cd/㎡ | Controller Sold Separately |
1 point/ 10M times (Gesture Comp.) |
0 ～ 60℃/ -20 ～ 60℃ |
500 x 293.2 x 15.78 | T.B.D./ T.B.D. |
*1 “G/F/F”: glass/film/film (1 layer of glass/2 layers of film) “F/G”: film/glass (1 layer of film/1 layer of glass) “G/G”: glass/glass (2 layers of glass)
