CAPACITIVE TOUCHSCREEN
DFS SERIES - Glass for EETI Type
CAPACITIVE TOUCHSCREEN
DFSSERIES
Lightweight multi-touchscreen with two layers of thin glass, UV-resistant & highly transmissive.
15
15.6w
18.5w
21.5w
A lightweight glass touchscreen with high transparency and visibility, even with two layers of glass, is achieved by thinning the sensor glass. It is also strong and resistant to ultraviolet rays.
Line Up
DRAG TO LEFT
Size Tail Length/
Position(mm)
Dimension(mm)
E : Outline
A : Active-Area
Total
Thickness(mm)
Product Number Drawing,
2D/3D Data
Controller
8.4 60/Lower Side E : 187.5 x 149
A : 170.9 x 128.2
2.35

DFS-084A060A-E
* Build to Order

10.1w 60/Lower Side E : 233.5 x 156.8
A : 216.96 x 135.6
2.35

DFS-101WA060A-E
* Build to Order

10.4 60/Lower Side E : 229.1 x 181.1
A : 211.2 x 158.4
2.35

DFS-104A060A-E
* Build to Order

12.1 60/Lower Side E : 266 x 209
A : 246 x 184.5
2.35

DFS-121A060A-E
* Build to Order

12.1w 60/Lower Side E : 279.1 x 186.3
A : 261.2 x 163.2
2.35

DFS-121WA060A-E
* Build to Order

15 60/Lower Side E : 322.9 x 251.7
A : 304.2 x 228.1
1.25

DFS-150A060A-E
* Build to Order

15.6w 120/Lower Side E : 367 x 220.5
A : 344.3 x 193.6
1.25

DFS-156WA120A-E
* Build to Order

18.5w 120/Lower Side E : 433 x 257.5
A : 409.8 x 230.4
1.25

DFS-185WA120A-E
* Build to Order

21.5w 120/Lower Side E : 500.5 x 297.5
A : 476.7 x 268.1
1.25

DFS-215WA120A-E
* Build to Order

SUPPORT DOWNLOAD

Download Docs

Specification
Touchscreen | DFS SERIES
Specification
Controller | DUSx200 SERIES
Specification
PCAP Touchscreen | Appearance standard
Manual
Glass/Glass Structure Touchscreen | Installation Guide
Cable
Controller Cable | DUS-10USB
Catalog
Touchscreen | DFS SERIES
PRODUCT INFO

Product Detail

  • Thin Double-Glass Capacitive Touchscreen
  • Thin Double-Glass Capacitive Touchscreen

    The glass component of the standard glass two-layer touchscreen has been made significantly thinner. The glass sensor is stronger and at the same time more visible, and even lighter due to its thinner profile.


  • Thin & High Visibility Even with Double Glazing
  • Thin & High Visibility Even with Double Glazing

    By laminating two thin sheets of glass together, the ease of handling has been significantly upgraded while maintaining visibility with almost no change in the strength of the glass.

WHY DFS SERIES

Why choose the DFS SERIES?

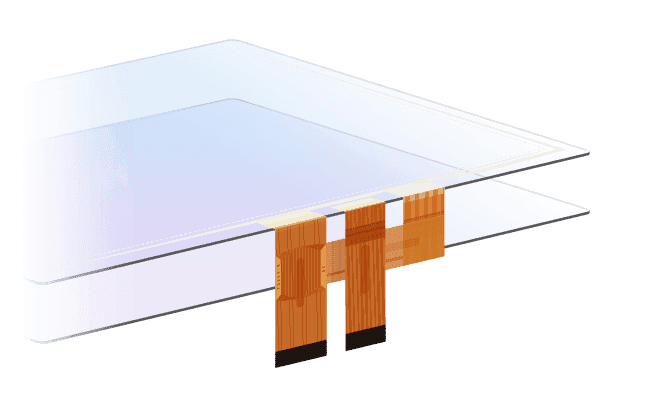

  • Thin but Robust Thin Tempered Glass is used
  • Thin but Robust Thin Tempered Glass is used

    The thinner tempered glass significantly reduces the thickness of the product width, even when two sensor glasses are stacked on top of each other. This allows the use of glass sensors in products where the use of glass sensors was previously put off due to their thickness.

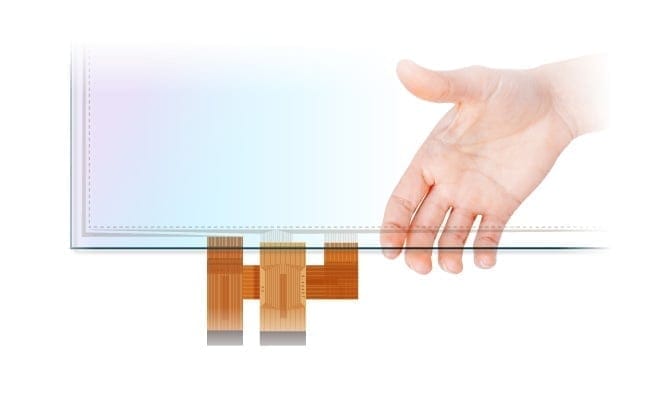

  • Thinner Glass Reduces Weight
  • Thinner Glass Reduces Weight

    In line with the thinner glass sensor used, the total weight of the product has also been reduced by 47% compared to our standard product. The robustness of the product is maintained, while the ease of use is also greatly improved. The weight of the product can also be significantly reduced.
