Product Detail
-
-

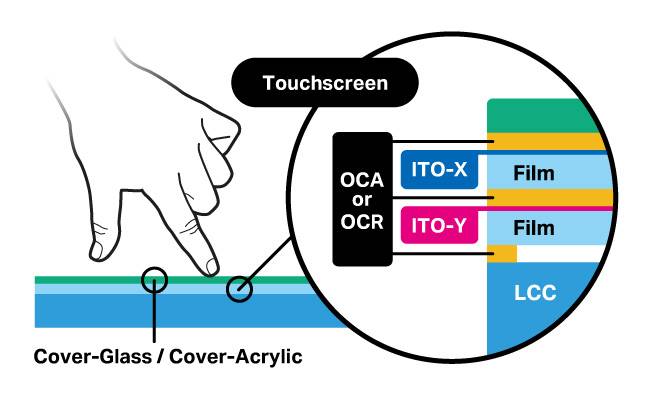

Adopted film/film structure with cover glass
Shifted from the conventional glass/glass structure to a film/film structure (two films laminated together). This reduced the thickness of the sensor section by over 80% and significantly reduced weight. The configuration is an integrated unit of “cover glass / sensor section (two film layers) / touch controller (COF)”.
-
-

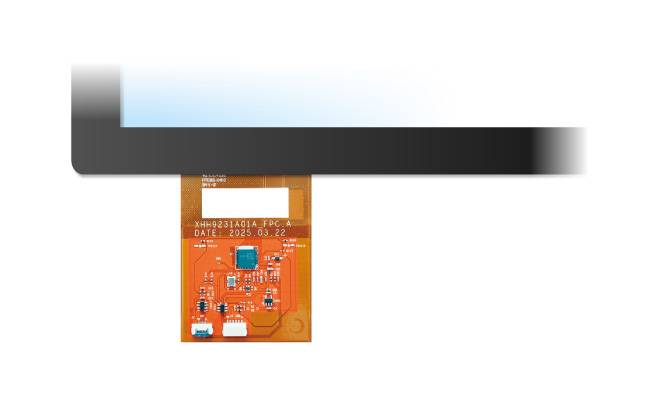

COF (Chip on Flexible) Structure Adopted
The Chip on Flexible (COF) structure is adopted, integrating the sensor and controller. This structure allows the entire touch panel to be directly incorporated into the housing. It contributes to weight reduction and space savings.
-
-

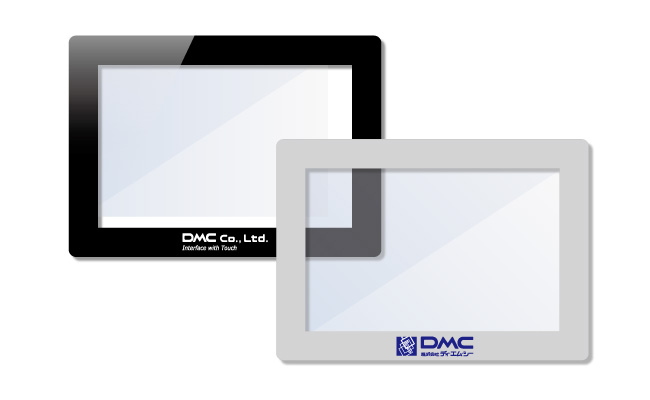

Custom Cover Glass Support
We offer cover glass in 1.1/1.8/2.9mm thickness to meet customer needs. This allows for flexible interface design (appearance design) tailored to product aesthetics and durability requirements.
