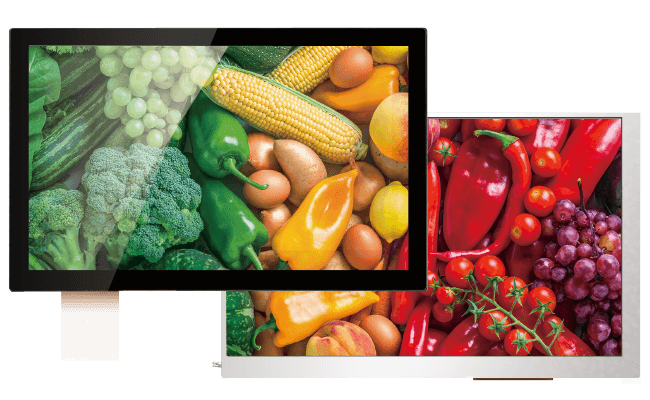

DMC's LCD
DMC guarantees LCD quality and stable supply, and contributes to solving all equipment issues as HMI*.
MOQ (minimum order quantity) constraints and long lead times (LT) are constant challenges for customers when procuring LCD devices.
Nowadays, when procurement from overseas manufacturers is the mainstream, customers have to consider many risks themselves, from quality variations and support in the event of trouble to long-term supply stability.
DMC has developed its own line of LCD devices to solve these issues. By establishing a speedy and stable supply system, we provide solutions that customers can incorporate into their applications with greater confidence.

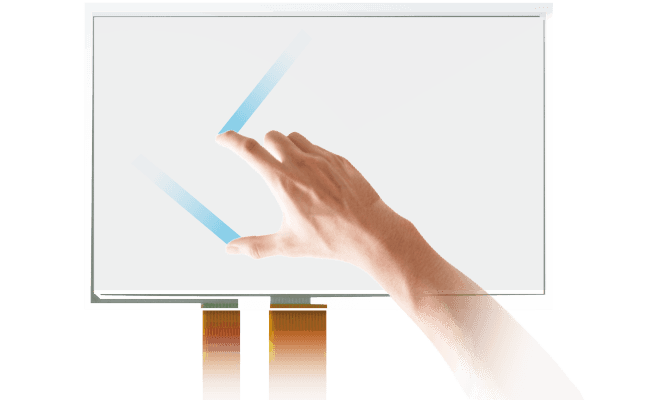

Touchscreen Sensor
Supports resistive and capacitive touch screens. Four types of products are lined up according to application and size.
Nowadays, the inclusion of touch sensors in LCD displays has become a standard specification in all fields, and touch screens have become an indispensable part of the man-machine interface.
Touch sensors are often used in tough environments with temperature changes, vibration, dust, etc., and require extremely advanced design techniques and high reliability.
DMC has been manufacturing touch sensors for over 30 years and has gained a large share of the market, especially in the industrial equipment market. We deliver the highest level of products to our customers through our extensive experience and reliable quality.
The choice is yours depending on your application

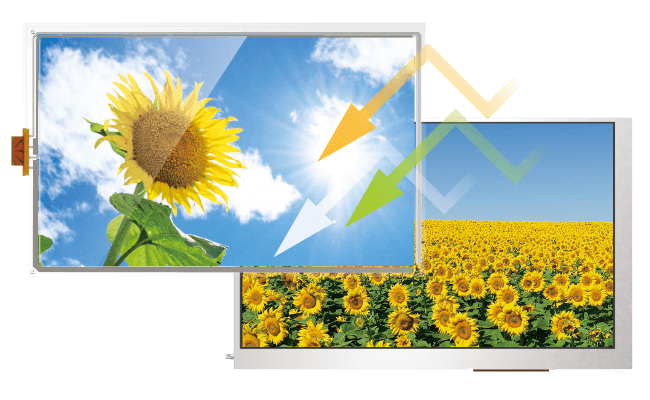

Clear View
Ease of Use
Damages
Case study by touchscreen type
Various

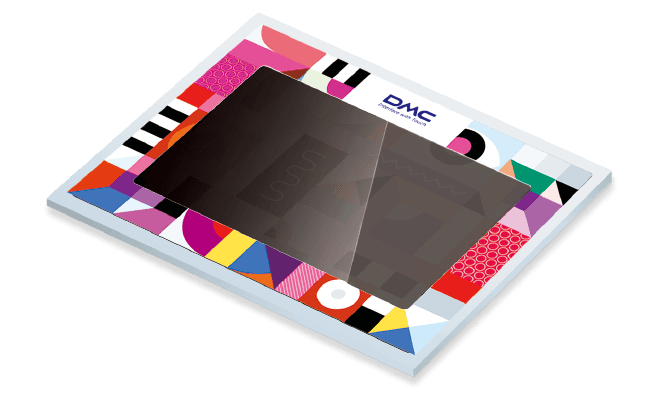

Cover glass solution (Capacitive only)

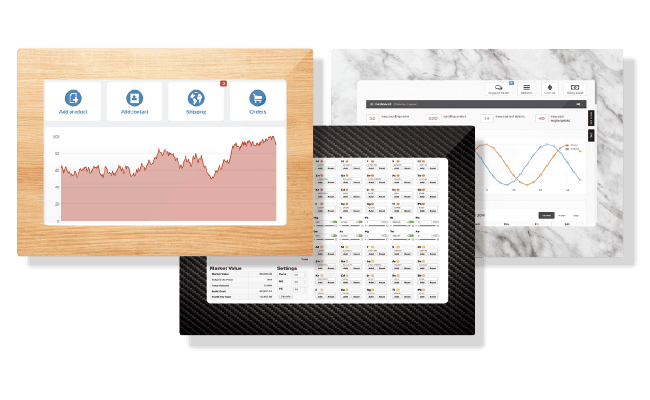

Cover glass of any print design/size/thickness is available. Fingerprint-proof and anti-reflective treatments are also available by surface treatment.
Customization options to select(Lot/100~)
Material: Normal/Strengthened
Surface treatment: Clear /AG+AF/AR+AF/AF
Thickness: 1.1mm/1.8mm
Corner processing: R (radius) processing
End surface treatment: thread chamfering
Size: Can be specified
Print color: Single color/2 colors/3 colors
Electronic data submission: Yes
Assembly methods etc…

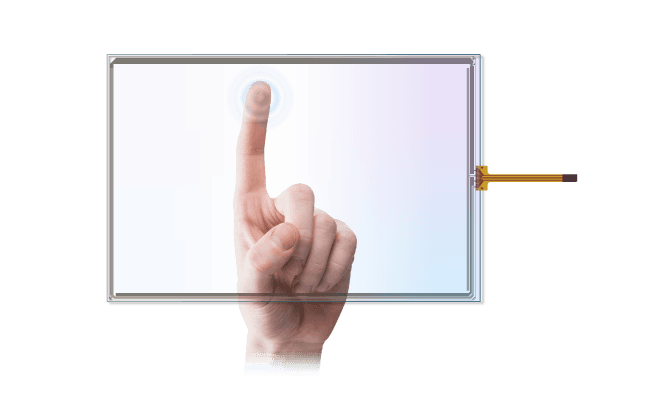

Resistive touch controller

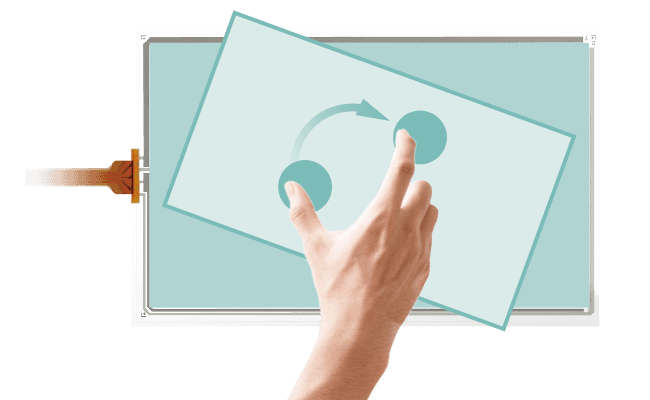

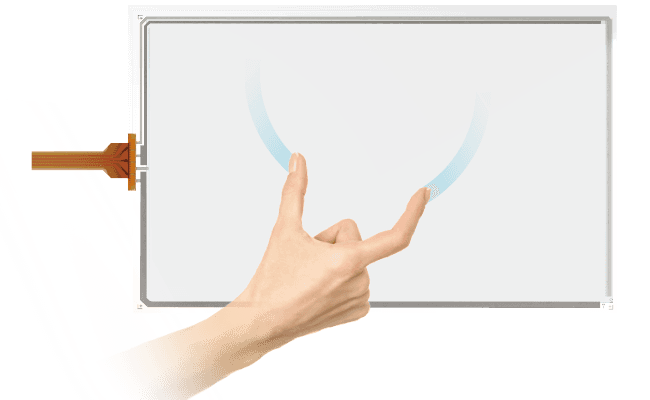

DMC's resistive touch controller allows gesture control using two fingers

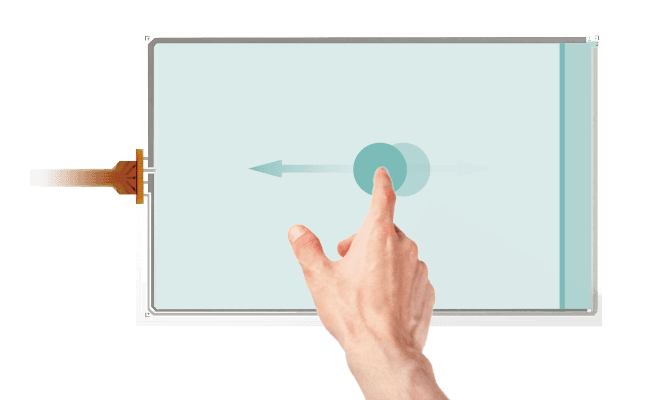

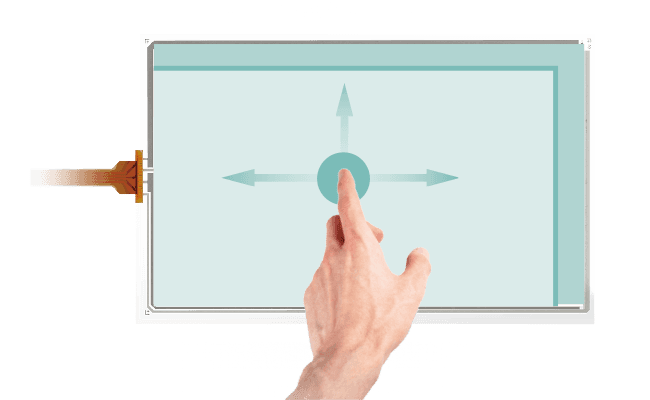

Flick

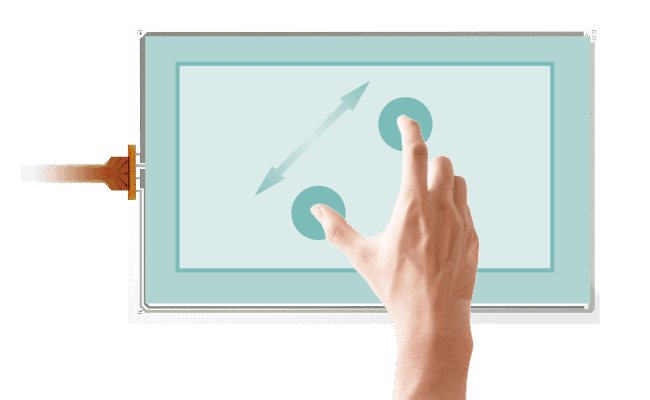

Pinch-in & out
Pan
Rotation

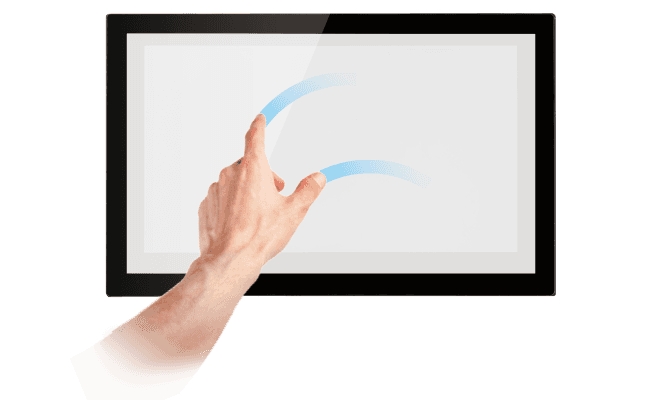

Smartphone-like operation even with resistive touch panels.

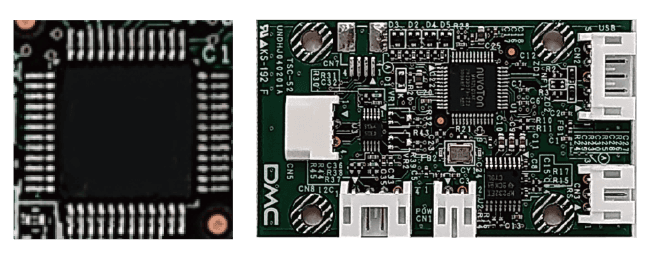

DMC's own technology detects the above four actions on the touch panel. Although it is a resistive touch screen, the screen can be operated with the same feel as a smartphone. Choice of IC or board.

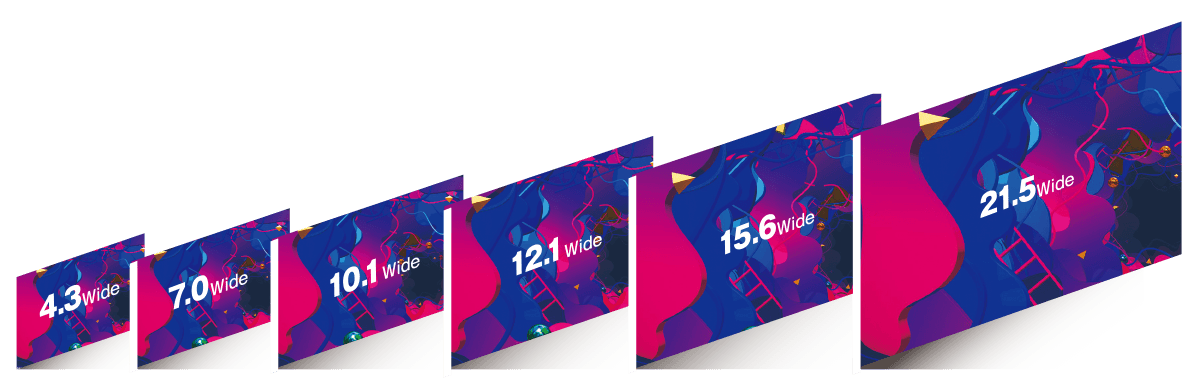

Spec
LCD Spec
| Size | Dot-Comp. (H x V dot) |
Active Area (W x H mm) |
Pixel Pitch (W x H mm) |
Number of colors |
View Angle (V/H) |
Backlight System/Driver |
Backlight Life (Typ.) |
LCD I/F |
|---|---|---|---|---|---|---|---|---|
| 4.3w | 480 x 272 (R,G,B) |
95.04 x 53.856 | 0.198 x 0.198 | 16.7M (Color 8bit) |
-80～80/ -80～80 |
LED/Not Installed | 50,000h | CMOS 3.3V Parallel |
| 7w | 1024 x 600 (R,G,B) |
154.21 x 85.92 | 0.1506 x 0.1432 | 16.7M (Color 8bit) |
-80～80/ -80～80 |
LED/Installed | 50,000h | LVDS |
| 10.1w | 1024 x 600 (R,G,B) |
222.72 x 125.28 | 0.2175 x 0.2088 | 16.7M (Color 8bit) |
-85～85/ -85～85 |
LED/Installed | 50,000h | LVDS |
| 12.1w | 1280 x 800 (R,G,B) |
261.12 x 163.2 | 0.204 x 0.204 | 16.7M (Color 8bit) |
-80～80/ -80～80 |
LED/Installed | 50,000h | LVDS |
| 15.6w | 1920 x 1080 (R,G,B) |
344.16 x 193.59 | 0.179 x 0.179 | 16.7M (Color 8bit) |
-89～89/ -89～89 |
LED/Installed | 50,000h | LVDS (Dual channel) |
| 21.5w | 1920 x 1080 (R,G,B) |
476.064 x 267.786 | 0.248 x 0.248 | 16.7M (Color 8bit) |
-89～89/ -89～89 |
LED/Installed | 50,000h | LVDS (Dual channel) |
Specifications for each model
| Size | Model | Touch- screen *1 |
Brightness | Controller I/F |
touch points/ Continuous striking life |
Ambient temp. /for storage |
Dimensions (H x V x Dmm) |
Weight |
|---|---|---|---|---|---|---|---|---|
| 4.3w | TK-SPA043WQ-101 | PCAP G/F/F |
550cd/㎡ | USB/I2C |
10 point/ 50M times |
-20 ～ 70℃/ -30 ～ 80℃ |
119 x 81 x 5.17 | 75g ±10% |
| 4.3w | TK-SRA043WQ-101 | Resistive F/G |
500cd/㎡ | Controller Sold Separately |
1 point/ 1M times |
-20 ～ 70℃/ -30 ～ 80℃ |
105.4 x 67.1 x 3.9 | 55g ±10% |
| 7w | TK-SPA07BWS-111 | PCAP G/F/F |
440cd/㎡ | USB/I2C |
10 point/ 50M times |
-20 ～ 70℃/ -30 ～ 80℃ |
186 x 118 x 12.18 | 195g ±10% |
| 7w | TK-SPA07BWS-101 | PCAP G/G |
430cd/㎡ | I2C/USB/UART (3.3V) |
5 point/ 50M times |
-30 ～ 80℃/ -30 ～ 80℃ |
166.62 x 108 x 13.03 | 225g±10% |
| 7w | TK-SRA07BWS-101 | Resistive F/G |
390cd/㎡ | Controller Sold Separately |
1 point/ 10M times (Gesture Comp.) |
-20 ～ 80℃/ -30 ～ 80℃ |
167.75 x 101.36 x 12.08 | 170g±10% |
| 10.1w | TK-SPA101WS-111 | PCAP G/F/F |
440cd/㎡ | USB/I2C |
10 point/ 50M times |
-20 ～ 70℃/ -30 ～ 80℃ |
255 x 161 x 8.54 | 335g ±10% |
| 10.1w | TK-SPA101WS-101 | PCAP G/G |
430cd/㎡ | I2C/USB/UART (3.3V) |
5 point/ 50M times |
-20 ～ 70℃/ -30 ～ 80℃ |
235.63 x 143 x 9.95 | 385g±10% |
| 10.1w | TK-SRA101WS-101 | Resistive F/G |
390cd/㎡ | Controller Sold Separately |
1 point/ 10M times (Gesture Comp.) |
-20 ～ 70℃/ -30 ～ 80℃ |
238.06 x 143.15 x 8.66 | 360g ±10% |
| 12.1w | TK-SPA121WX-111 | PCAP G/F/F |
350cd/㎡ | USB/I2C |
10 point/ T.B.D. |
-20 ～ 70℃/ -20 ～ 70℃ |
296 x 202 x 12.14 | 680g ±10% |
| 12.1w | TK-SPA121WX-101 | PCAP G/G |
340cd/㎡ | I2C/USB/UART (3.3V) |
5 point/ 50M times |
-20 ～ 70℃/ -20 ～ 70℃ |
278 x 184 x 13.55 | 750g ±10% |
| 12.1w | TK-SRA121WX-101 | Resistive F/G |
310cd/㎡ | Controller Sold Separately |
1 point/ 10M times (Gesture Comp.) |
-20 ～ 70℃/ -20 ～ 70℃ |
279.56 x 184 x 12.26 | 720g ±10% |
| 15.6w | TK-SPA156FH-111 | PCAP G/F/F |
400cd/㎡ | USB/I2C |
10 point/ 50M times |
-20 ～ 70℃/ -30 ～ 80℃ |
386.2 x 241.4 x 12.14 | 1,545g ±10% |
| 15.6w | TK-SPA156FH-101 | PCAP G/G |
390cd/㎡ | I2C/USB/UART (3.3V) |
5 point/ 50M times |
-20 ～ 70℃/ -30 ～ 80℃ |
363.8 x 215.9 x 12.85 | 1,490g ±10% |
| 15.6w | TK-SRA156FH-101 | Resistive F/G |
350cd/㎡ | Controller Sold Separately |
1 point/ 10M times (Gesture Comp.) |
-20 ～ 70℃/ -30 ～ 80℃ |
364.53 x 215.9 x 11.56 | 1,430g ±10% |
| 21.5w | TK-SPA215FH-111 | PCAP G/F/F |
350cd/㎡ | USB/I2C |
10 point/ 50M times |
0 ～ 60℃/ -20 ～ 60℃ |
523 x 321 x 16.3 | 2,795g ±10% |
| 21.5w | TK-SPA215FH-101 | PCAP G/G |
340cd/㎡ | I2C/USB/UART (3.3V) |
5 point/ 50M times |
0 ～ 60℃/ -20 ～ 60℃ |
497.6 x 287 x 17.07 | 2,740g ±10% |
| 21.5w | TK-SRA215FH-101 | Resistive F/G |
310cd/㎡ | Controller Sold Separately |
1 point/ 10M times (Gesture Comp.) |
0 ～ 60℃/ -20 ～ 60℃ |
500.52 x 293.2 x 15.78 | T.B.D. |
*1 “G/F/F”: glass/film/film (1 layer of glass/2 layers of film) “F/G”: film/glass (1 layer of film/1 layer of glass) “G/G”: glass/glass (2 layers of glass)
