Challenge Today for an Exciting Tomorrow
Touchscreen Film
Protection Film
Protects the touchscreen from scratches & dirt & keeps it clean with regular maintenance.
A transparent protective film that protects the surface of a resistive touchscreen from scratches, dirt, and vandalism. Regular replacement can help maintain cleanliness and appearance.

Feature of Protection Film

  • Protective sheet for resistive film to protect touch panel
  • Protective sheet for resistive film to protect touch panel

    Due to their stability, resistive touchscreens are often used in industrial equipment applications for a long period of time, and because of their characteristic of not allowing input from any input device (they can be operated by anyone other than the fingers), they are sometimes operated with tools. In such an environment, if you want to prevent the appearance of the touchscreen from deteriorating due to scratches and stains on the surface of the touchscreen, a protective film for the touchscreen is recommended.

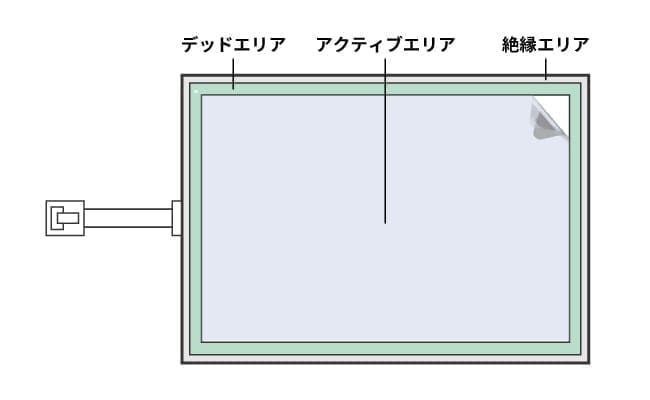

  • Transparent and contributes to improved design and design features
  • Transparent and contributes to improved design and design features

    Self-adhesive protective film, so it can be replaced more easily by the customer themselves. Because it is cut to a size that fits the active area of the touch screen, it looks great when applied together. It's very hygienic and can be used again and again, and can be peeled off repeatedly.


Examples of Utilization

  • Prevention of cracks when dropped on a handheld device
    Category Cases
    Products used 4-Wire Resistive Type (6.5inch)
    Tempered glass
    Touchscreen Protective Film
    Recruitment Industry Industrial Equipment
    Uses Teaching Pendant
    Scene Robustness/ Stain-resistant and antibacterial
  • Background

    A handy operation panel used in a factory to set (teach) the operation to an equipment robot. The user carries it by hand while using it. Workers in the factory could operate it with their hands covered with oil or other substances.

  • Adopt Content

    Since the operation panel is used in a factory, the resistive type is the best choice because of its high reliability and high market share in industrial applications. However, since it is a handy terminal and may be dropped, it is necessary to devise a way to make the resistive film system resistant to cracking. The resistive system, which does not use glass but only consists of film and polycarbonate, is the best solution for light and resistant to cracking, but it is not suitable for environments with temperature differences and has the weakness of poor appearance. The end result is a resistive touchscreen with a normal film/glass structure and tempered glass in the bottom glass. There was also a concern that the screen would be obscured by oil on the hands of factory workers, so the protective film for the touch screen was periodically replaced.


Ideal for Places Like This

  • For countermeasures against cracks in touch panels used in industrial sites

    I want to introduce and consider it as a countermeasure against cracks in the touch panels of on-site devices and equipment.

  • For touch panels in the medical field where cleanliness is always required.

    Reduce daily maintenance costs by using disposables and reupholstering when soiled.

  • For touch panels at public sites that are touched by an unspecified number of people

    Public touch panels that everyone uses to both reinforce and improve dirt and cleanability.

Line Up
Product Number Size Compatibility Dimensions
ST-9231E1 5.7 inch AST-057A070A Interchange 117.2×88.4 mm
ST-9231E2 10.4inch AST-104A080A Interchange 212.0×159.0 mm
ST-9231E3 12.1inch AST-121B080A Interchange 247.0×185.5 mm
ST-9231E4 15inch AST-150C080A Interchange 305.0×229.0 mm

* Other sais will be customized. Please contact us for more information.

Other Functional Touchscreen Film
